Adding a Canon Printer

Canon CAPT

CAPT models:

  • LBP810 / LBP1120
  • LBP2410 / LBP2900 / LBP2900B
  • LBP3000 / LBP3010 / LBP3100 / LBP3200 / LBP3250 / LBP3300 / LBP3310 / LBP3500
  • LBP5000 / LBP5050 / LBP5050N / LBP5100 / LBP5200 / LBP5300
  • LBP6000 / LBP6000B / LBP6020 / LBP6020B / LBP6200D / LBP6300DN / LBP6310DN
  • LBP7010C / LBP7018C
  • LBP7200CDN / LBP7210CDN
  • LBP9100CDN

For non-CAPT printer (not listed above) follow general steps.

For some Canon printers of the CAPT family, there are two drivers: an open captdriver and an original driver from the manufacturer.

Open Driver

The open driver does not require additional configuration and supports the following models:

  • LBP2900/LBP3000
  • LBP3010/LBP3018/LBP3050
  • LBP3100/LBP3108/LBP3150 (choose LBP3010/LBP3018/LBP3050 driver)
  • LBP6000/6018 (choose LBP3010/LBP3018/LBP3050 driver)

If you want to use an open driver, add a printer according to general instructions.

Driver from the manufacturer

Other models in the CAPT family that are not supported by an open driver require the manufacturer driver to be enabled. It works in emulation mode, which is why the delay before printing can be up to 20 seconds.

Instructions for firmware version 1.11 and later:

  1. Go to the đź–¨ Printer Settings section of the web interface at http://uowprint.local
  2. Click the Add Printer button. You will need to enter the username: uow, password: 5-digit numeric password, highlighted in bold on the device body
  3. Select the detected printer
  4. Select the driver ending with the word CAPT, for example, Canon LBP1120 CAPT
  5. Go to the device’s web interface at http://uowprint.local
  6. In the “Other” section, check the “Support for Canon CAPT printers” checkbox, select your printer from the list, click “Apply”. If the printer is not listed in the drop-down list, refresh the page.

Instructions for firmware version 1.09-1.10

  1. Go to the đź–¨ Printer Settings section of the web interface at http://uowprint.local
  2. Click the Add Printer button. You will need to enter the username: uow, password: 5-digit numeric password, highlighted in bold on the device body
  3. Select CAPT Printer
  4. In the Connection field enter: ccp://localhost:59687
  5. Select the driver ending with the word CAPT, for example, Canon LBP1120 CAPT
  6. Go to the device’s web interface at http://uowprint.local
  7. In the “Other” section, check the “Support for Canon CAPT printers” checkbox, select your printer from the list, click “Apply”. If the printer is not listed in the drop-down list, refresh the page.

Instructions for firmware version 1.01-1.08

Only LBP-810/LBP-1120 are supported with this firmware version.

  1. Go to device’s web interface 🖨 Printer Settings section at http://uowprint.local
  2. Click the Add Printer button. You will need to enter the username: uow, password: 5-digit numeric password, highlighted in bold on the device body
  3. Select CAPT Printer
  4. In the Connection field, enter: ccp://localhost:59687
  5. On the printer name selection page, it is required to name it LBP1120 (even if you have an LBP810)
  6. Select the Canon LBP1120 CAPT driver
  7. Go to the device’s web interface at http://uowprint.local
  8. Check the box "Support for Canon LBP-810/LBP-1120", click "Apply"

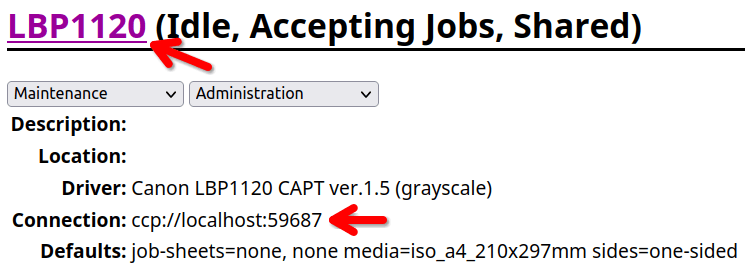

If the setup was completed correctly, you should see the following options on the Printer Settings page:

Example of correct configuration of Canon LBP-810/1120
